Finolex Industries Ltd
Agriculture Pipes & Fittings

Agriculture Pipes & Fittings

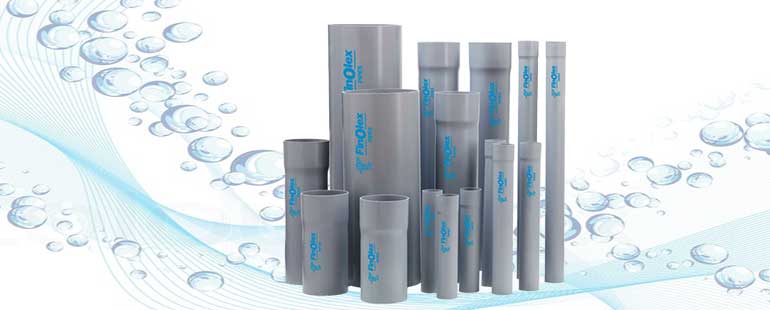

PVC-U Selfit Agriculture Pipes -

The Selfit (Solvent Cement Joint) pipes have one end self-socketed and the other end plain, which fits snugly without the use of copiers. The strong solvent cement joint is permanent and trouble-free..

  • Technical Specifications for Finolex PVC-U Selfit Agriculture Pipes
    Nominal Outside Diameter (Nominal Size, in mm) CLASS Mean Outside Diameter (mm) Wall Thickness (mm) Selfit
    Min Max Min Max Cat No. Package
    90 CLASS 1, 2.5 KG/CM2 90 90 1.3 1.7 1011990921101 6 MTR
    110 CLASS 1, 2.5 KG/CM2 110 110 1.6 2.0 1011110921102 6 MTR
    110 CLASS 1, 2.5 KG/CM2 110 110 1.6 2.0 1011110921101 5 MTR
    140 CLASS 1, 2.5 KG/CM2 140 141 2.0 2.4 1011140921100 6 MTR
    160 CLASS 1, 2.5 KG/CM2 160 161 2.3 2.8 1011160921101 6 MTR
    180 CLASS 1, 2.5 KG/CM2 180 181 2.6 3.1 1011180921100 6 MTR
    200 CLASS 1, 2.5 KG/CM2 200 201 2.9 3.4 1011200921100 6 MTR
    225 CLASS 1, 2.5 KG/CM2 225 226 3.3 3.9 1011225921100 6 MTR
    250 CLASS 1, 2.5 KG/CM2 250 251 3.6 4.2 1011250921100 6 MTR
    280 CLASS 1, 2.5 KG/CM2 280 281 4.1 4.8 1011280921100 6 MTR
    315 CLASS 1, 2.5 KG/CM2 315 316 4.6 5.3 1011315921100 6 MTR
    355 CLASS 1, 2.5 KG/CM2 355 356 5.1 5.9 1011355921100 6 MTR
    400 CLASS 1, 2.5 KG/CM2 400 401 5.8 6.7 1011400921100 6 MTR
    63 CLASS 2, 4 KG/CM2 63 63 1.5 1.9 1011963941101 5MTR
    90 CLASS 2, 4 KG/CM2 90 90 2.1 2.6 1011990941100 5MTR
    110 CLASS 2, 4 KG/CM2 110 110 2.5 3.0 1011110941100 5MTR
    63 CLASS 2, 4 KG/CM2 63 63 1.5 1.9 1011963941104 6 MTR
    75 CLASS 2, 4 KG/CM2 75 75 1.8 2.2 1011975941103 6 MTR
    90 CLASS 2, 4 KG/CM2 90 90 2.1 2.6 1011990941103 6 MTR
    110 CLASS 2, 4 KG/CM2 110 110 2.5 3.0 1011110941102 6 MTR
    140 CLASS 2, 4 KG/CM2 140 141 3.2 3.8 1011140941101 6 MTR
    160 CLASS 2, 4 KG/CM2 160 161 3.7 4.3 1011160941101 6 MTR
    180 CLASS 2, 4 KG/CM2 180 181 4.2 4.9 1011180941101 6 MTR
    200 CLASS 2, 4 KG/CM2 200 201 4.6 5.3 1011200941100 6 MTR
    225 CLASS 2, 4 KG/CM2 225 226 5.2 6.0 1011225941100 6 MTR
    250 CLASS 2, 4 KG/CM2 250 251 5.7 6.5 1011250941100 6 MTR
    280 CLASS 2, 4 KG/CM2 280 281 6.4 7.4 1011280941100 6 MTR
    315 CLASS 2, 4 KG/CM2 315 316 7.2 8.3 1011315941100 6 MTR
    355 CLASS 2, 4 KG/CM2 355 356 8.1 9.4 1011355941100 6 MTR
    400 CLASS 2, 4 KG/CM2 400 401 9.1 10.5 1011400941100 6 MTR
    40 CLASS 3, 6 KG/CM2 40 40 1.4 1.8 1011940961100 5 MTR
    50 CLASS 3, 6 KG/CM2 50 50 1.7 2.1 1011950961100 5 MTR
    40 CLASS 3, 6 KG/CM2 40 40 1.4 1.8 1011940961101 6 MTR
    50 CLASS 3, 6 KG/CM2 50 50 1.7 2.1 1011950961101 6 MTR
    63 CLASS 3, 6 KG/CM2 63 63 2.2 2.7 1011963961103 6 MTR
    75 CLASS 3, 6 KG/CM2 75 75 2.6 3.1 1011975961100 6 MTR
    90 CLASS 3, 6 KG/CM2 90 90 3.1 3.7 1011990961101 6 MTR
    110 CLASS 3, 6 KG/CM2 110 110 3.7 4.3 1011110961102 6 MTR
    125 CLASS 3, 6 KG/CM2 125 125 4.3 5.0 1011125961100 6 MTR
    140 CLASS 3, 6 KG/CM2 140 141 4.8 5.5 1011140961101 6 MTR
    160 CLASS 3, 6 KG/CM2 160 161 5.4 6.2 1011160961102 6 MTR
    180 CLASS 3, 6 KG/CM2 180 181 6.1 7.1 1011180961103 6 MTR
    200 CLASS 3, 6 KG/CM2 200 201 6.8 7.9 1011200961102 6 MTR
    225 CLASS 3, 6 KG/CM2 225 226 7.6 8.8 1011225961100 6 MTR
    250 CLASS 3, 6 KG/CM2 250 251 8.5 9.8 1011250961100 6 MTR
    280 CLASS 3, 6 KG/CM2 280 281 9.5 11.0 1011280961100 6 MTR
    315 CLASS 3, 6 KG/CM2 315 316 10.7 12.4 1011315961100 6 MTR
    355 CLASS 3, 6 KG/CM2 355 356 12.0 13.8 1011355961100 6 MTR
    400 CLASS 3, 6 KG/CM2 400 401 13.5 15.6 1011400961100 6 MTR
    25 CLASS 4, 8 KG/CM2 25 25 1.2 1.6 1011925981100 3 MTR
    25 CLASS 4, 8 KG/CM2 25 25 1.2 1.6 1011925981101 5 MTR
    32 CLASS 4, 8 KG/CM2 32 32 1.5 1.9 1011932981101 5 MTR
    25 CLASS 4, 8 KG/CM2 25 25 1.2 1.6 1011925981102 6 MTR
    32 CLASS 4, 8 KG/CM2 32 32 1.5 1.9 1011932981102 6 MTR
    110 CLASS 4, 8 KG/CM2 110 110 4.9 5.6 1011110981100 6 MTR
    140 CLASS 4, 8 KG/CM2 140 141 6.3 7.3 1011140981100 6 MTR
    160 CLASS 4, 8 KG/CM2 160 161 7.2 8.3 1011160981100 6 MTR
    200 CLASS 4, 8 KG/CM2 200 201 8.9 10.3 1011200981100 6 MTR
    250 CLASS 4, 8 KG/CM2 250 251 11.2 12.9 1011250981100 6 MTR
    280 CLASS 4, 8 KG/CM2 280 281 12.5 14.4 1011280981100 6 MTR
    315 CLASS 4, 8 KG/CM2 315 316 14.0 16.1 1011315981100 6 MTR
    355 CLASS 4, 8 KG/CM2 355 356 15.8 18.2 1011355981100 6 MTR
    400 CLASS 4, 8 KG/CM2 400 401 17.8 20.5 1011400981100 6 MTR
    20 CLASS 5, 10 KG/CM2 20 20 1.1 1.5 1010920101100 5 MTR
    25 CLASS 5, 10 KG/CM2 25 25 1.4 1.8 1011925101102 5 MTR
    32 CLASS 5, 10 KG/CM2 32 32 1.8 2.2 1011932101100 5 MTR
    20 CLASS 5, 10 KG/CM2 20 20 1.1 1.5 1010920101101 6 MTR
    25 CLASS 5, 10 KG/CM2 25 25 1.4 1.8 1011925101101 6 MTR
    32 CLASS 5, 10 KG/CM2 32 32 1.8 2.2 1011932101101 6 MTR
    40 CLASS 5, 10 KG/CM2 40 40 2.2 2.7 1011940101100 6 MTR
    50 CLASS 5, 10 KG/CM2 50 50 2.8 3.3 1011950101100 6 MTR
    63 CLASS 5, 10 KG/CM2 63 63 3.5 4.1 1011963101100 6 MTR
    75 CLASS 5, 10 KG/CM2 75 75 4.2 4.9 1011975101100 6 MTR
    90 CLASS 5, 10 KG/CM2 90 90 5.0 5.7 1011990101100 6 MTR
    110 CLASS 5, 10 KG/CM2 110 110 6.1 7.1 1011110101100 6 MTR
    140 CLASS 5, 10 KG/CM2 140 141 7.7 8.9 1011140101100 6 MTR
    160 CLASS 5, 10 KG/CM2 160 161 8.8 10.2 1011160101100 6 MTR
    200 CLASS 5, 10 KG/CM2 200 201 11.0 12.7 1011200101100 6 MTR
    225 CLASS 5, 10 KG/CM2 225 226 12.4 14.3 1011225101100 6 MTR
    250 CLASS 5, 10 KG/CM2 250 251 13.8 15.9 1011250101100 6 MTR
    280 CLASS 5, 10 KG/CM2 280 281 15.4 17.8 1011280101100 6 MTR
    315 CLASS 5, 10 KG/CM2 315 316 17.3 19.9 1011315101100 6 MTR
    25 CLASS 6, 12.5 KG/CM2 25 25 1.7 2.1 1010925121100 5 MTR
    32 CLASS 6, 12.5 KG/CM2 32 32 2.2 2.7 1010932121100 5 MTR
    63 CLASS 6, 12.5 KG/CM2 63 63 4.3 5.0 1011963121100 6 MTR
    90 CLASS 6, 12.5 KG/CM2 90 90 6.1 7.1 1011990121100 6 MTR
    110 CLASS 6, 12.5 KG/CM2 110 110 7.5 8.7 1011110121100 6 MTR
    160 CLASS 6, 12.5 KG/CM2 160 161 10.9 12.6 1011160121100 6 MTR

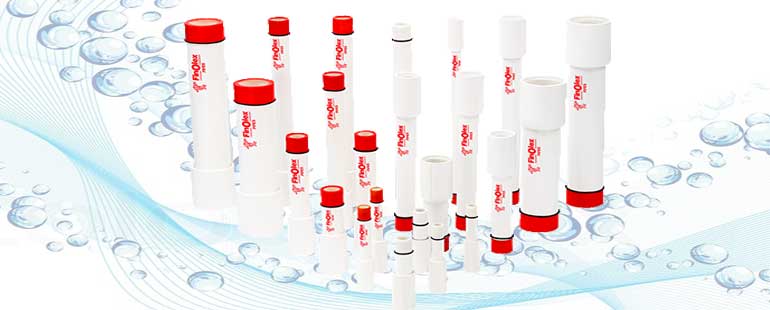

PVC-U Column Pipes -

Finolex PVC-U column Pipes are uniquely designed and are manufactured using Highly advanced state-of-the-art CNC machines. Known for its proprietary Lead-free compound, Finolex PVC-U column pipes offer excellent hassle-free performance. These pipes are available in full range of pressure ratings from Economy, Medium, Standard and Heavy in standard lengths of 3 meters. The square threaded coupling joint ensures ease of jointing as well as with high tensile strength. A high torque resistance locking system and specially designed rubber “O” ring give a trouble-free operation.

  • Technical Specifications for Finolex PVC-U Column Pipes
    Nominal
    Bore/Size    		 Type Wall Thickness Safe allowable
    Hydrostatic Pressure Kgf/cm2    		 Safe Delivery
    Head M    		 Cat No. Package
    END BARREL
    Min Max Min Max
    25MM (1″) V4 4.7 4.9 2 2.3 15 150 1026932991102 3 mtr
    25MM (1″) CRYSTAL 5 5.3 2.5 2.8 21 210 1026932991103 3 mtr
    25MM (1″) STANDARD 4.95 5.3 4 4.5 30 300 1026932991101 3 mtr
    32MM (1 1/4″) V4 4.2 4.5 2.4 2.7 15 150 1026940991104 3 mtr
    32MM (1 1/4″) CRYSTAL 4.8 5.1 2.8 3.1 21 210 1026940991103 3 mtr
    32MM (1 1/4″) STANDARD 6.3 6.5 4.1 4.3 25 250 1026940991101 3 mtr
    32MM (1 1/4″) HEAVY 6.4 6.9 5.2 5.8 35 350 1026940991102 3 mtr
    40MM (1 1/2″) V4 4.5 4.8 2.7 3 15 150 1026950991104 3 mtr
    40MM (1 1/2″) CRYSTAL 5.3 5.6 3.5 3.8 21 210 1026950991103 3 mtr
    40MM (1 1/2″) STANDARD 6.6 6.8 4.1 4.4 26 260 1026950991101 3 mtr
    40MM (1 1/2″) HEAVY 8.4 8.6 5.9 6.1 35 350 1026950991102 3 mtr
    50MM (2″) MEDIUM 5.1 5.4 2.6 2.9 13 130 1026963991103 3 mtr
    50MM (2″) STANDARD 6.4 6.8 3.9 4.3 20 200 1026963991101 3 mtr
    50MM (2″) HEAVY 7.9 8.4 5.3 5.7 27 270 1026963991102 3 mtr
    65MM (2 1/2″) MEDIUM 5.1 5.4 2.6 2.9 10 100 1026975991103 3 mtr
    65MM (2 1/2″) STANDARD 6.5 6.9 4 4.4 16 160 1026975991101 3 mtr
    65MM (2 1/2″) HEAVY 8.5 9.3 6.3 6.8 26 260 1026975991102 3 mtr
    80MM (3″) MEDIUM 5.7 6.1 3.2 3.5 11 110 1026990991103 3 mtr
    80MM (3″) STANDARD 7.5 7.8 5 5.5 17 170 1026990991101 3 mtr
    80MM (3″) HEAVY 9.8 10.3 7.3 7.8 26 260 1026990991102 3 mtr
    100MM (4″) MEDIUM 6.3 6.6 3.8 4.3 10 100 1026110991101 3 mtr
    100MM (4″) STANDARD 8.2 8.5 5.7 6.2 15 150 – 3 mtr
    100MM (4″) HEAVY 11.9 12.3 9.4 10 26 260 – 3 mtr


    Column Pipe Type Pipe Size Pipe size, mm Submersible Pumps size
    Crystal 1″, 1¼”, 1 ½” 25, 30, and 40 Upto 100mm sub. Pump
    Medium 2″ 2½”, & 3″ 50, 65 and 80 Upto 150mm sub. Pump
    3″, 4″ 80, 100 Upto 200mm sub. Pump
    Standard 1″, 1¼”, 1 ½” 25, 30, and 40 Upto 100mm sub. Pump
    1¼”, 1 ½”, 2″ & 2½” 30, 40, 50, and 65 Upto 150mm sub. Pump
    3″, 4″ 80, 100 Upto 200mm sub. Pump
    Heavy 1¼”, 1 ½”, 2″, 2½”, & 3″ 30, 40, 50, 65, and 80 Upto 150mm sub. Pump

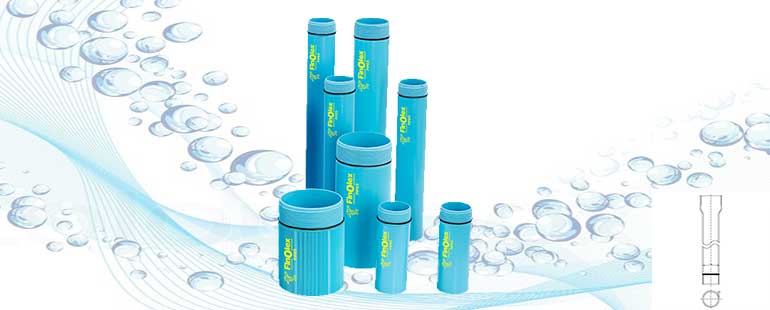

CS Casing Pipes-

for well depth up to 80 meters.

  • Technical Specifications for Finolex CS Casing Pipes
    Nominal Diameter DN (mm) Mean Outside Diameter of pipe Outside Diameter of Pipe at Any Point Mean Outside Diameter Over Connection Wall Thickness “t” (mm) Cat No. (plain) Cat No. (slotted) Package “L”
    Min Max Min Max Max Min Max
    150 165 165.4 164.8 165.6 174 5.7 6.5 1021150993105 1020150993103 3
    mtr
    175 200 200.5 199.8 200.6 211 7 7.8 1021175993101 1020175993100 3
    mtr
    200 225 225.5 224.8 225.8 238 7.6 8.8 1021200993106 1020200993101 3
    mtr
    250 280 280.5 279.6 280.8 292 9.6 11 1021250993100 – 3
    mtr
    Note : In addition to the above range we also offer 125CS, 180CS & 225CS plain and any other casing pipe as per specific requirements.

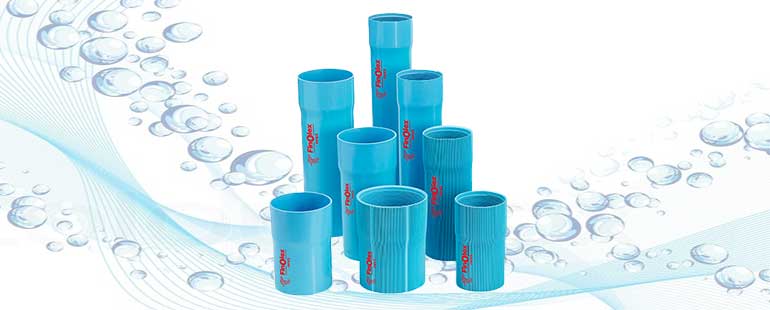

CM Casing Pipes-

For well depth between 80-250 meters.

  • Technical Specifications for Finolex CM Casing Pipes
    Nominal Diameter DM (mm) Mean Outside Diameter of Pipe Outside Diameter of Pipe at Any Point Mean Outside Diameter Over Connection Wall Thickness (mm) Cat No. (plain) Cat No. (slotted) Package “L”
    Min Max Min Max Max Min Max
    40 48 48.2 48 48.3 52 3.5 4 – – –
    50 60 60.2 59.9 60.3 65 4 4.6 – – –
    80 88 88.3 88 88.4 94 4 4.6 – – –
    100 113 113.3 112.9 113.4 120 5 5.7 1021100993102 1020100993104 3 mtr
    125 140 140.4 139.9 140.5 150 6.5 7.3 1021125993103 1020140993100 3 mtr
    150 165 165.4 164.8 165.6 178 7.5 8.5 1021150993104 1020150993101 3 mtr
    175 200 200.5 199.8 200.6 215 8.8 9.8 1021175993100 1020175993101 3 mtr
    200 225 225.5 224.8 225.8 243 10 11.2 1021200993105 1020200993102 3 mtr
    250 280 280.5 279.6 280.8 298 12.5 14 1021250993102 – 3 mtr
    Note : In addition to the above range we also offer 113CM,180CM,213CM & 225CM plain and any other casing pipe as per specific requirements.

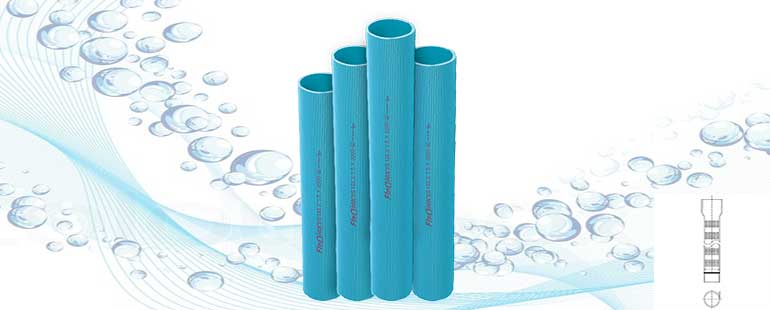

Screen Pipes With Ribs -

These are used in a different way for water extraction.

  • Technical Specifications for Finolex Screen Pipes with Ribs
    Nominal Diameter DN (mm) Mean Outside Diameter of Pipe Outside Diameter of Pipe at Any Point Mean Outside Diameter Over Connection Wall Thickness “t” (mm) Cat No. Package “L”
    Min Max Min Min Max
    40 52 51.9 56 3.5 4 – –
    50 64 63.9 69 4 4.6 – –
    80 92 91.8 98 4 4.6 – –
    100 117 116.8 124 5 5.7 1020100993102 3 mtr
    150 168 168.6 182 7.5 8.5 1020150993100 3 mtr
    200 229 228.5 247 10 11.2 1020200993100 3 mtr



Finolex SDR -

SDR 52 – FOR WELL DEPTH UPTO 40 FEET (12 METERS)

  • Technical Specifications for Finolex SDR-SDR 52 – FOR WELL DEPTH UPTO 40 FEET (12 METERS)



    SIZE CLASS, D, (mm)

    MEAN OUTSIDE DIA

    O.D. AT ANY POINT

    WALL THICKNESS “t” (mm)

    LENGTH TOLERANCE ± 5 Socketed (m)

    Cat No.

    Package “L”

    Min

    Max

    Min.

    Max.

    Min.

    Max.

    110 SDR – 52

    110

    110.4

    108.6

    111.4

    2.1

    2.4

    6.005

    1025110993103

    6 mtr

    140 SDR – 52

    140

    140.5

    138.3

    141.7

    2.7

    3.2

    6.005

    1025140993101

    6 mtr

    160 SDR – 52

    160

    160.5

    158

    162

    3.1

    3.5

    6.005

    1025160993100

    6 mtr

    180 SDR – 52

    180

    180.6

    177.8

    182.2

    3.5

    3.9

    6.005

    1025180993101

    6 mtr

    200 SDR – 52

    200

    200.6

    197.6

    202.4

    3.8

    4.3

    6.005

    1025200993102

    6 mtr
  • Technical Specifications for Finolex SDR-SDR 35 – FOR WELL DEPTH BETWEEN 60-90 FEET (18-24 METERS)



    SIZE CLASS, D, (mm)

    MEAN OUTSIDE DIA

    O.D. AT ANY POINT

    WALL THICKNESS “t” (mm)

    LENGTH TOLERANCE ± 5 Socketed (m)

    Cat No. (plain)

    Cat No. (slotted)

    Package “L”

    Min

    Max

    Min.

    Max.

    Min.

    Max.

    110 SDR – 35

    110

    110.4

    108.6

    111.4

    3.1

    3.5

    6.005

    1025110993102

    1025110993104

    6 mtr

    125 SDR – 35

    125

    125.4

    123.5

    126.5

    3.6

    4

    6.005

    1025125993100

    1025125993101

    6 mtr

    140 SDR – 35

    140

    140.5

    138.3

    141.7

    4

    4.5

    6.005

    1025140993103

    1025140993104

    6 mtr

    160 SDR – 35

    160

    160.5

    158

    162

    4.5

    4.9

    6.005

    1025160993103

    1025160993104

    6 mtr

    180 SDR – 35

    180

    180.6

    177.8

    182.2

    5.1

    5.6

    6.005

    1025180993104

    1025180993105

    6 mtr

    200 SDR – 35

    200

    200.6

    197.6

    202.4

    5.7

    6.3

    6.005

    1025200993103

    1025200993104

    6 mtr

    225 SDR – 35

    225

    225.7

    222.3

    227.5

    6.4

    7

    6.005

    1025225993100

    —

    6 mtr



Our products are standard ISI products & our main principals are ISO companies..

Contact Now

Ram Parkash Chopra & Sons proud to be the oldest and leading distributors of :-
